Equipment Specifications
Item | Specification |
|---|---|
Model | HBWO-2412H-ZS1 |
Hot Air Oven Voltage | 220V |
European Convection Oven Voltage | 220V |
Proofing Cabinet Voltage | 220V |
Total Power | 17KW (3-wire connection) |
G1 Power | 9.5KW |
G2 Power | 6KW |
G3 Power | 1.5KW |
Weight | 425kg |
Water Inlet | 1/2 inch |
Drain Outlet | 1/2 inch |
Baking Tray Size | 400 × 600mm |
Note | Power cable can be changed to single wire connection |

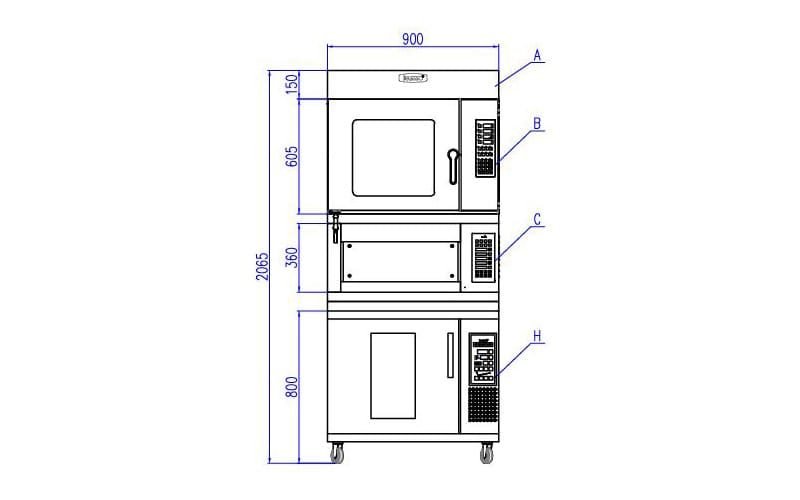

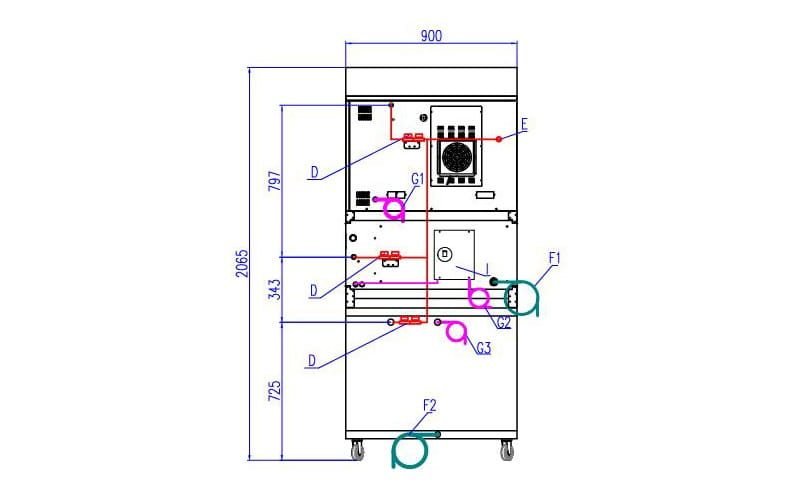

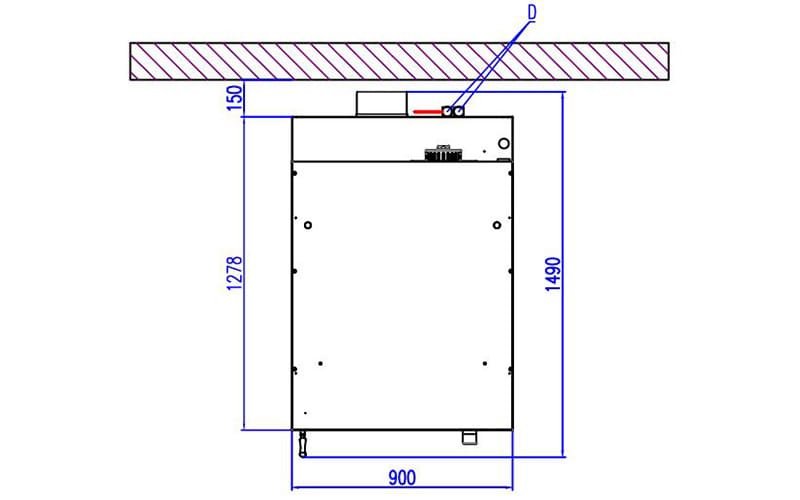

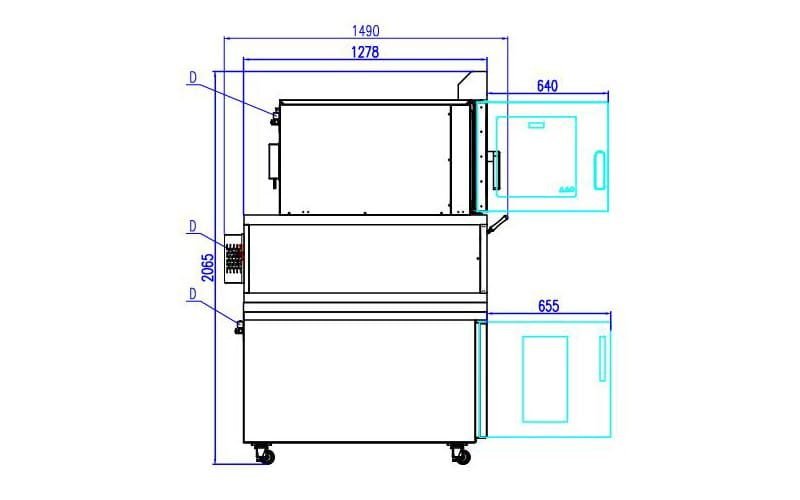

Accessories Configuration
Code | Accessory Name | Description |
|---|---|---|
A | Decorative Panel (Optional) | Optional installation |
B | 4-Tray Hot Air Oven | |
C | 2-Tray European Convection Oven with Stone Plate & Steam | |
D | Solenoid Valve | |
E | Water Inlet Connection | Includes 3-meter water hose |
F1 | Drain Outlet Connection | Includes 2.5-meter drain hose |
F2 | Drain Outlet Connection | Same as above |
G1 | Power Cable (Single Phase) | 3 meters long |
G2 | Power Cable (Single Phase) | 3 meters long |
G3 | Power Cable | 3 meters long, 16A plug |
H | 12-Tray Refrigerated Proofing Cabinet | |
I | Circuit Breaker Box |
SIZE

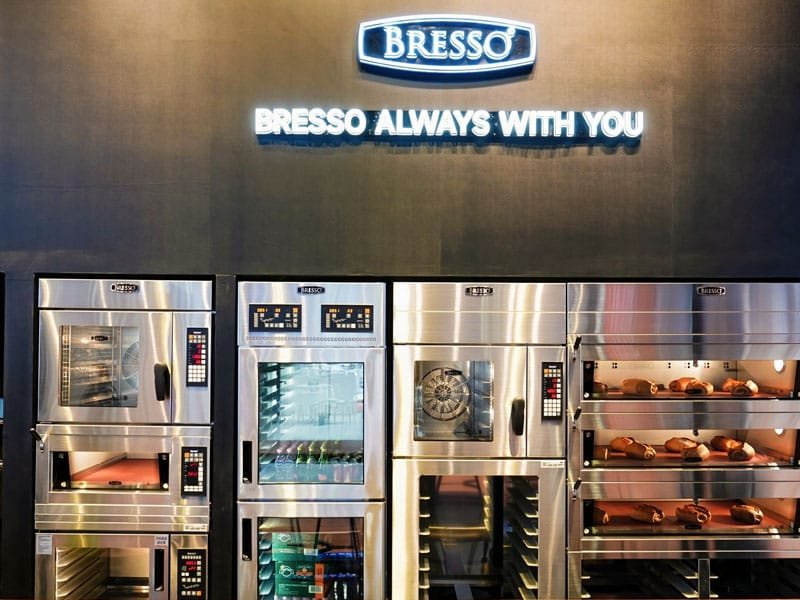

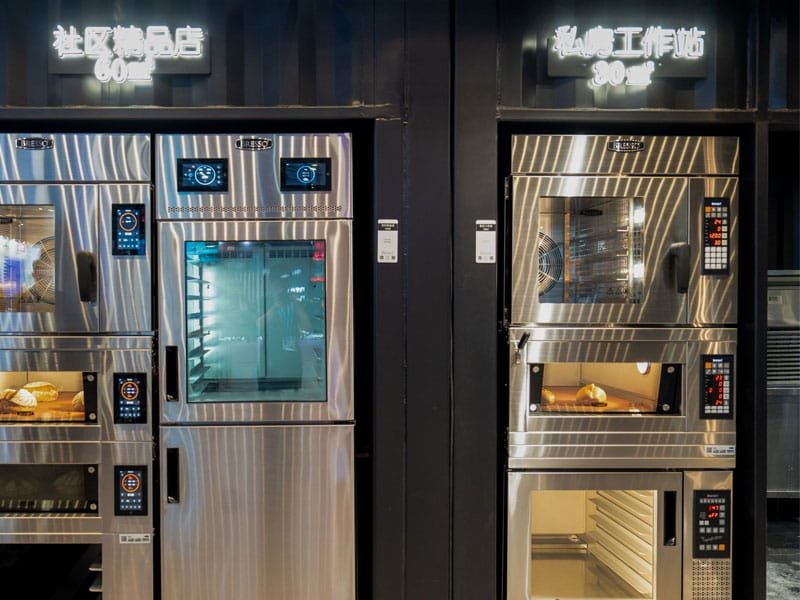

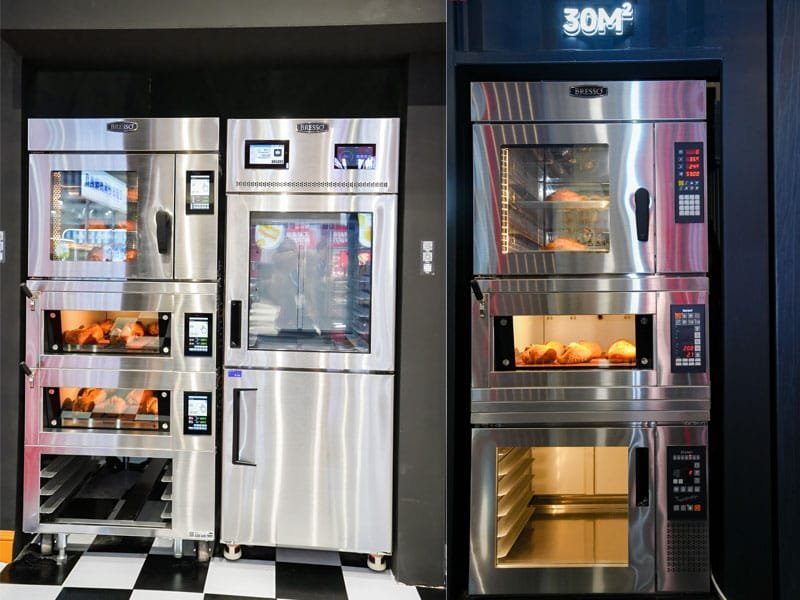

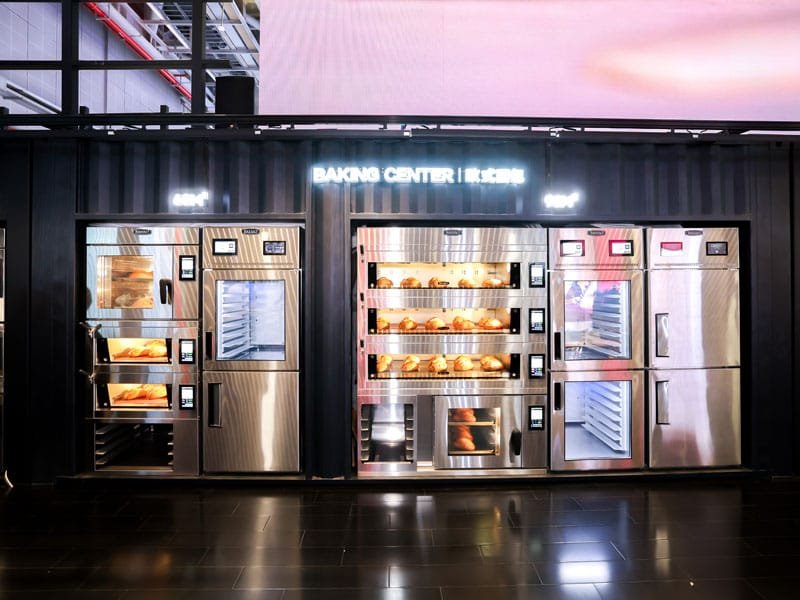

SCENES
