Description
OVERVIEW
√ Advanced technology of STEAM Heating System, baked bread with best sheen.
√ Matrix Heating System with Far Infrared IBS technology, shorten the baking time.
√ Unique using LOW-E Tempered Glass, rediate heat inside the chamber, avoiding heat loss.
√ VT&VI Fully welded nano thermal insulation system, Modular design with perfect insulation.
√ Configurable heating levels, best recycleable and insulation materials, optimize Energy resource usage.
Unique Integrated STEAM Heating System
Thanks to Integrated Heating technology, much more Energy-saving. Option to choose standard separate stream generator. The steam generators are thermostatically controlled, producing abundant quantity of high-pressure saturated steam economically, and rapidly to make the bread with best sheen.

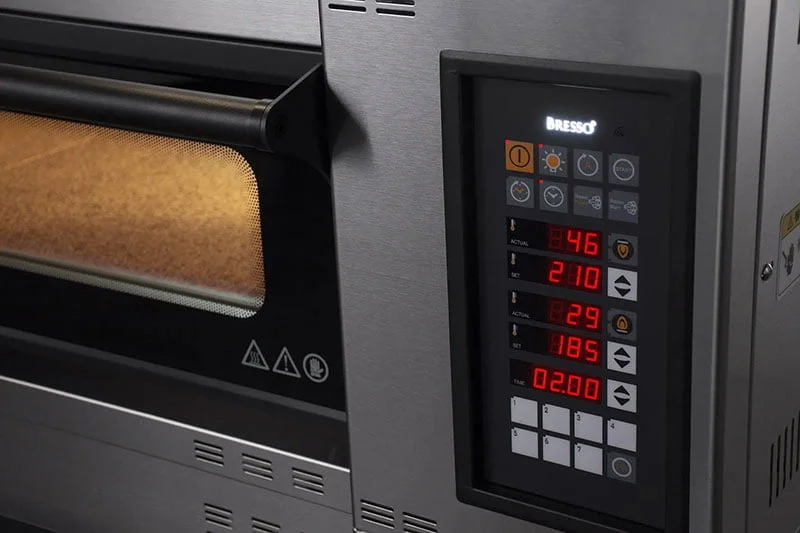

Boot appointment function
Standard oven, it can realize Boot appointment function before leaving the workshop, when you back to the shop next morning, Bresso oven has been preheated according to the time and temperature setting, just looking forward to your baking operation.
Configurable Heating Levels
Bresso ovens own efficient configurable heating levels, firepower of large fire, medium fire and small fire. Our systems optimize Energy resource usage, avoiding energy losses. Becides we use recycleable and insulation materials, equipped with modern control units, digital data management to realize perfect energy efficiency.
Nichrome Wire Heater
NICHROME WIRE HEATER, imported from Japan with high quality and combined with Advanced IBS technology ( Far Infrared Enamel Treatment), equipped with Matrix Heating System creating a greater heating surface area to guarantee uniform baking. The wire heater shorten the baking time by 20%~50%, baking time of 100g bread has been shortened 2 minutes. More Energy-saving compared to other brand ovens.

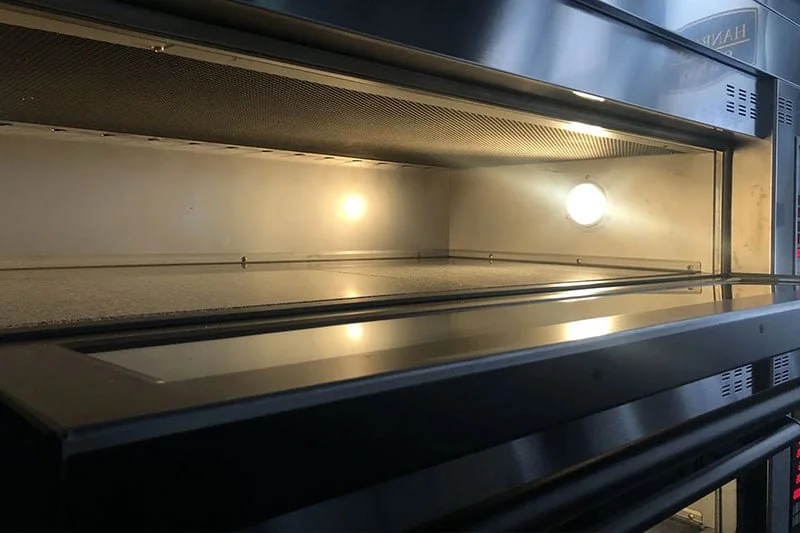

LOW-E Tempered Glass
Unparalleled merit of Bresso oven is equipped with LOW-E Tempered Glass, heat inside the oven will not dissipate to outside, gather all the heat inside the chamber to shorten the baking time and achieving energy-saving effect. Under baking status the heat from Low-E glass will not let you feel too hot to approach.

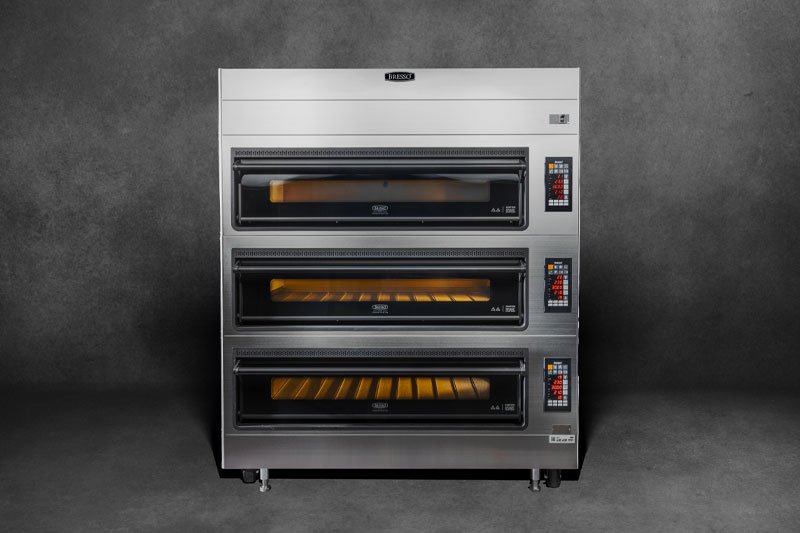

VT&VI Fully Welded Nano Thermal Insulation System
VT&VI Fully Welded Nano Thermal Insulation System, economic efficiency and flexibility. Each deck is separately modular design, 1-4 decks stack one above the other. Modular design has its advantage of perfect Insulation, it avoids transmitting the heat to the other chambers which will influence the baking result. We choose optimum aluminum plate materials, excellent sealing performance with full welding process.
Product Parameter
| Model type 1 | HDBO-2003 |
| Trays (600*400mm) |  |
| Tray quantity | 2(tray)*3(layer)
total：6pcs
|
| Product size | 1275*1017*1800mm |
| Baking chamber | 850*670*230mm |
| Each deck power | 4.2kw |
| Total power | 12.6kw |
| Voltage | 380v or customized |
| Effective temperature | indoor~300℃ |
| IBS infrared technology | √ |
| Stone-slab | option |
| Steam apparatus | option |
| Draw-plate (feeder) | option |
| Exhaust hood | option |
| Bakeware insert rack | option |
| Remark | need water pipe and drain pipe;
customized layer qty requirement is available.
|
| Model type 2 | HDBO-3003 |
| Trays (600*400mm) |  |
| Tray quantity | 3(tray)*3(layer)
total：9pcs
|
| Product size | 1650*1022*1800mm |
| Baking chamber | 1230*670*230mm |
| Each deck power | 6kw |
| Total power | 18kw |
| Voltage | 380v or customized |
| Effective temperature | indoor～300℃ |
| IBS infrared technology | √ |
| Stone-slab | option |
| Steam apparatus | option |
| Draw-plate (feeder) | option |
| Exhaust hood | option |
| Bakeware insert rack | option |
| Remark | need water pipe and drain pipe;
customized layer qty requirement is available.
|
| Model type 3 | HDBO-4003 |
| Trays (600*400mm) |  |
| Tray qty | 4(tray)*3(layer)
total：12pcs
|
| Product size | 1650*1222*1800mm |
| Baking chamber | 1230*870*230mm |
| Each deck power | 7.5kw |
| Total power | 22.5kw |
| Voltage | 380v or customized |
| Effective temperature | indoor～300℃ |
| IBS infrared technology | √ |
| Stone-slab | option |
| Steam apparatus | option |
| Draw-plate (feeder) | option |
| Exhaust hood | option |
| Bakeware insert rack | option |
| Remark | need water pipe and drain pipe;
customized layer qty requirement is available.
|
| Model type 4 | HDBO-4004 |
| Trays (600*400mm) | |
| Tray qty | 4(tray)*4(layer)
total：16pcs
|
| Product size | 1653*1222*2105mm |
| Baking chamber | 1230*870*230mm |
| Each deck power | 7.5kw |
| Total power | 30kw |
| Voltage | 380v or customized |
| Effective temperature | indoor～300℃ |
| IBS infrared technology | √ |
| Stone-slab | option |
| Steam apparatus | option |
| Draw-plate (feeder) | option |
| Exhaust hood | option |
| Bakeware insert rack | option |
| Remark | need water pipe and drain pipe;
customized layer qty requirement is available.
|
