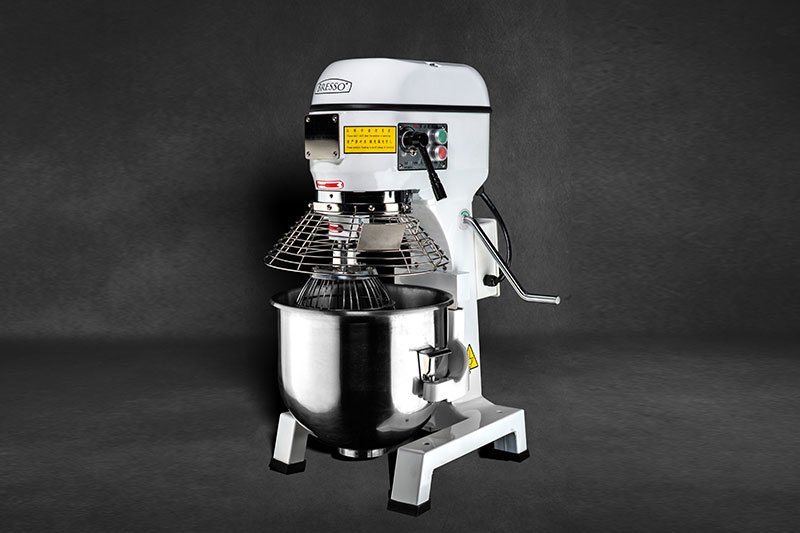

Planetary Mixer Machine

Three-speed variable speed, Multi-layer anti-rust coating treatment, Durable and Low noise

HKM Mixer represents the ideal machine for bakeries and confectioners. It is made of thick stainless steel and strong mechanical components, with high reliablity performance.
Excellent mechanical feature make this machine sturdy, reliable and silent, with long lifespan.

CONTACT US FOR MORE INFORMATION

Phone Support Tel: +86 21 69981991

Mobile Phone: +86 13162864111

inquiry

Description

OVERVIEW

√ Its head section has a special thermoformed and shockproof plastic cap.

√ Transmission gears are made of rectified nickel-chrome-molybdenum steel.

√ Tool-stopping system conforms to CE safety derectives.

√ Durable and Low noise

√ Three-speed variable speed

√ Multi-layer anti-rust coating treatment



Tool-stopping system

Its head section has a special thermoformed and shockproof plastic cap. Transmission gears are made
of rectified nickel-chrome-molybdenum steel. Tool-stopping system conforms to CE safety
derectives
.



Vertical design breaker

Vertical design commercial egg breaker, the overall structure is stable and rigid,
equipped with imported powerful motors and cooling fans, long-term operation will not overheat, gear
thickness increased by 30%, using nickel-chromium alloy steel, vacuum treatment and precision
grinding, durable and Low noisetoothed belt drive system, can
buffer the instant force, protect the gear and motor. Three-speed variable speed, flexibly matched with
different agitators and speeds according to process requirements, to maximize the economic benefits of one machine for
multiple purposes.



National standard food grade SUS#304 stainless steel

The whole machine has undergone multi-layer anti-rust coating treatment, be made of national standard
food grade SUS#304 stainless steel, which will never rust and is resistant to high temperature or acid
and alkali. It has passed the EU electrical safety CE standard certification and complies with the American health NSF
standard. It is suitable for food factories, hotel kitchens, etc. As whipping cream or egg white and the multiple mixing
uses, such as mixing cake batter, it’s a delicate and practical equipment.



Planetary Mixer Parameter

HKM-201

Specification Value
Product size 560 * 560 * 830mm
Power /
Voltage 220V/380V
Horsepower 1/2HP
Net Weight 83kgs
Stirring Hook Speed 131/288/518 rpm/min
Stirring Bowl Speed 41/90/162 rpm/min
Stirring Hook Weight(Dough) 1.8kgs
Stirring Ball Weight(Egg juice) 3kgs
Stirring Fan Weight(Stuffing) 3kgs

HKM-401

Specification Value
Product size 690 * 700 * 1090mm
Power 111
Voltage 220V/380V
Horsepower 1-1/2HP
Net Weight 162kgs
Stirring Hook Speed 120/240/468 rpm/min
Stirring Bowl Speed 40/80/156 rpm/min
Stirring Hook Weight(Dough) 5.6kgs
Stirring Ball Weight(Egg juice) 6kgs
Stirring Fan Weight(Stuffing) 6kgs

HKM-201PRO

Specification Value
Product size 625 * 870 * 1480mm
Power 2.2kw
Voltage 380V
Horsepower /
Net Weight 310kgs
Stirring Hook Speed 110/215/430 rpm/min
Stirring Bowl Speed 34/66/131 rpm/min
Stirring Hook Weight(Dough) /
Stirring Ball Weight(Egg juice) /
Stirring Fan Weight(Stuffing) /

HKM-401PRO

Specification Value
Product size 625 * 870 * 1480mm
Power 2.2kw
Voltage 380V
Horsepower /
Net Weight 350kgs
Stirring Hook Speed 110/215/430 rpm/min
Stirring Bowl Speed 34/66/131 rpm/min
Stirring Hook Weight(Dough) /
Stirring Ball Weight(Egg juice) /
Stirring Fan Weight(Stuffing) /

Planetary Mixer MODEL
